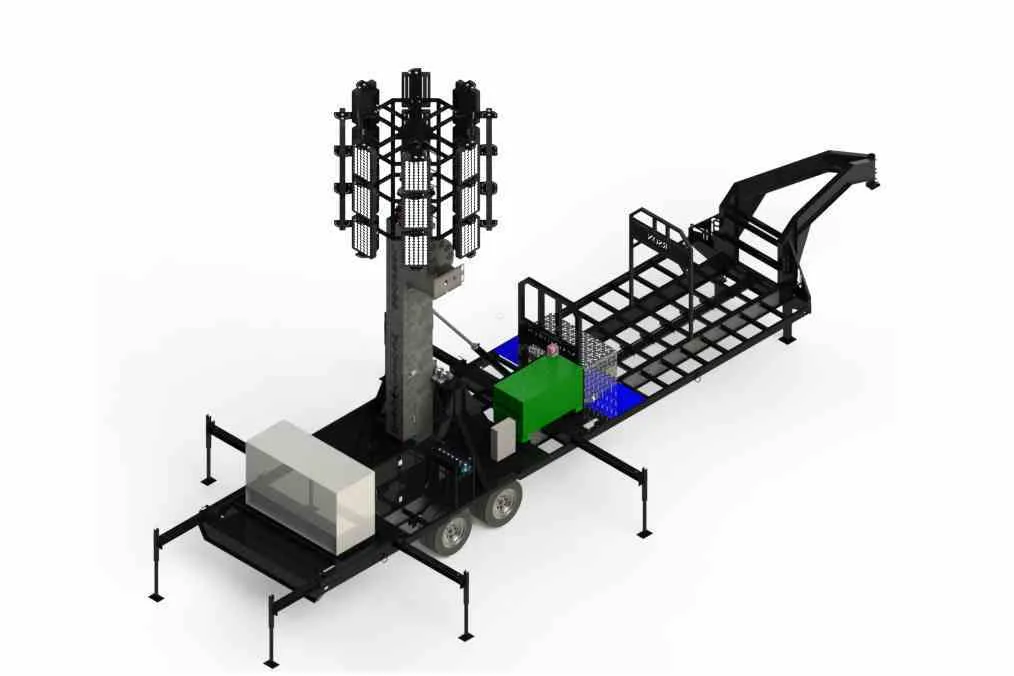

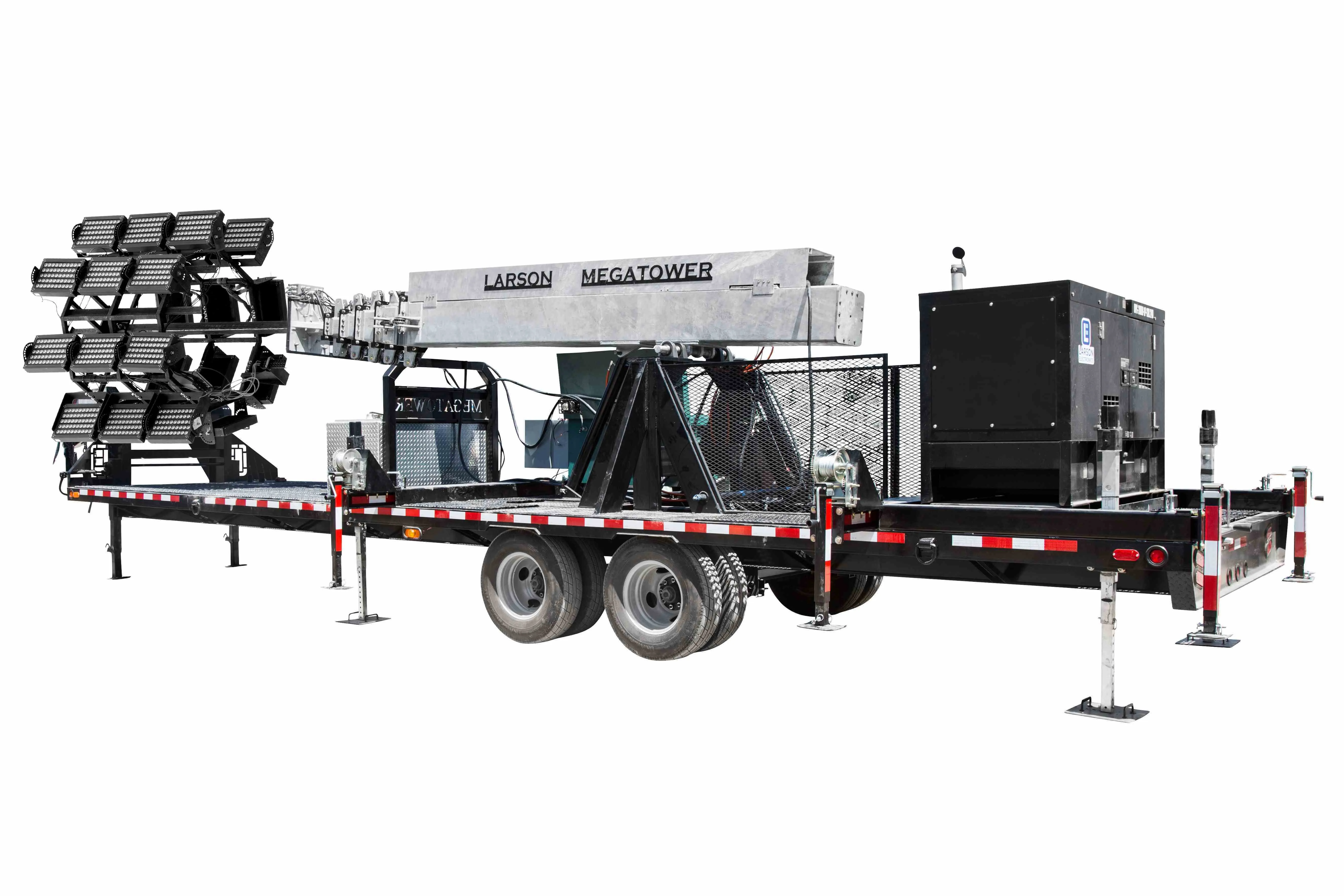

Larson Electronics 77' Hydraulic Megatower™ Light Plant - 33' Trailer - (20) LED Fixtures - 1,350,000 lms - 480V 1PH
Discription
The Larson Electronics LM-HLM65-20X500LTL-LED-TLR-480V.1P is a high-performance, towable LED light plant designed for demanding industrial lighting applications. This 480V AC grid-tied unit provides continuous power to twenty high-output 500W LED lights, delivering an impressive 1,350,000 lumens. The hydraulic mast extends up to 77 feet, offering expansive illumination from an elevated vantage point, ideal for large events, construction sites, and industrial projects.
Built with durable carbon steel and galvanized for weather resistance, this Megatower™ includes IP67-rated LEDs, an auto-retract wind monitoring system, and a cold weather package, ensuring robust performance even in harsh environments. Each LED head is adjustable for precise directional lighting, while the entire unit is mounted on a heavy-duty dual tandem-axle trailer, enabling secure transport over challenging terrain. This grid-tie model eliminates the need for refueling, making it an efficient, low-maintenance lighting solution for extended operations.
Key Features
- High-Intensity Output: Generates a total of 1,350,000 lumens with high-efficiency LEDs for extensive coverage.

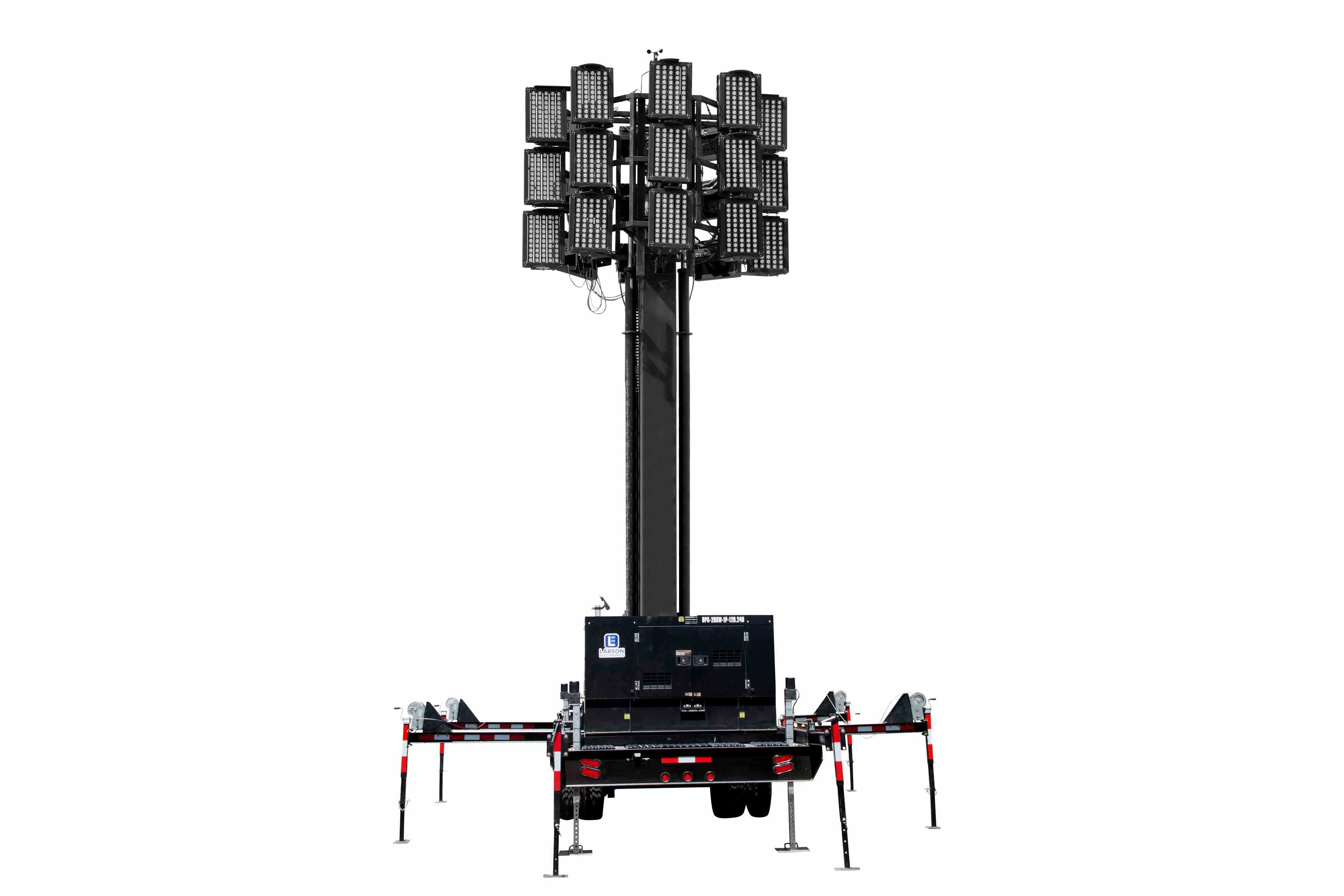

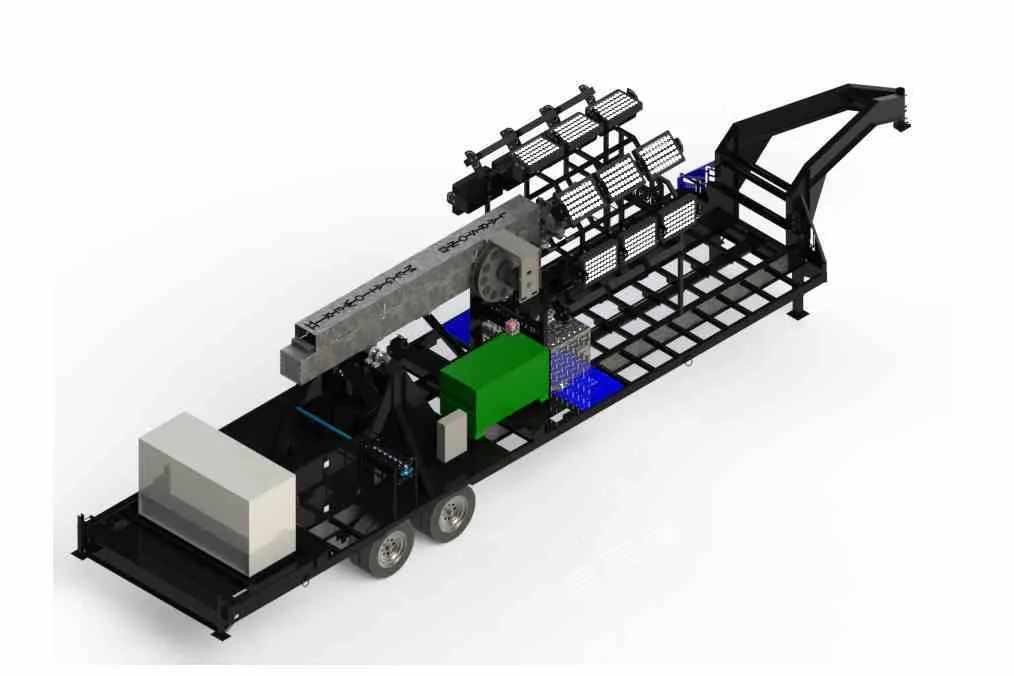

- Telescoping Hydraulic Mast: Reaches up to 77 feet and collapses to 30 feet for compact storage and transport.
- Grid-Tie Operation: Operates on 480V AC single-phase power, ideal for locations with reliable grid access.
- Cold Weather Ready: De-icing system and insulated hydraulic lines for optimal performance in freezing temperatures.
- Robust Wind Monitoring: Automatically retracts mast in high-wind conditions for safe operation.
- Heavy-Duty Construction: IP67-rated LEDs and a galvanized carbon steel frame for weather resistance.
- Precise Adjustability: Independent control and adjustment of each LED light head for targeted lighting.
- Low Maintenance: No fuel required; grid-tie system reduces operating and maintenance costs.
- Six-Point Stabilization: Dual-axle trailer with six jacks ensures stable setup on uneven ground.
- Eco-Friendly LEDs: Safe, recyclable LEDs with no hazardous materials, running cooler than traditional lights.
Detailed Specifications
System Specifications:
| Specification | Details |
|---|---|
| System Type | Grid Tie |
| Voltage | 480V AC |
| Phase | Single |
| Cold Weather Package | Included (de-icing system, insulated hydraulic lines) |
Light Mast Specifications
| Specification | Details |
|---|---|
| Tower Length | 30' (collapsed) to 77' (fully extended) |
| Materials | Galvanized Carbon Steel |
| Operation | Hydraulic for upright and extension |
| Wind Resistance | Auto-retract feature for wind speeds over 35 mph |
| Beam Pattern Options | Flood and Spot |

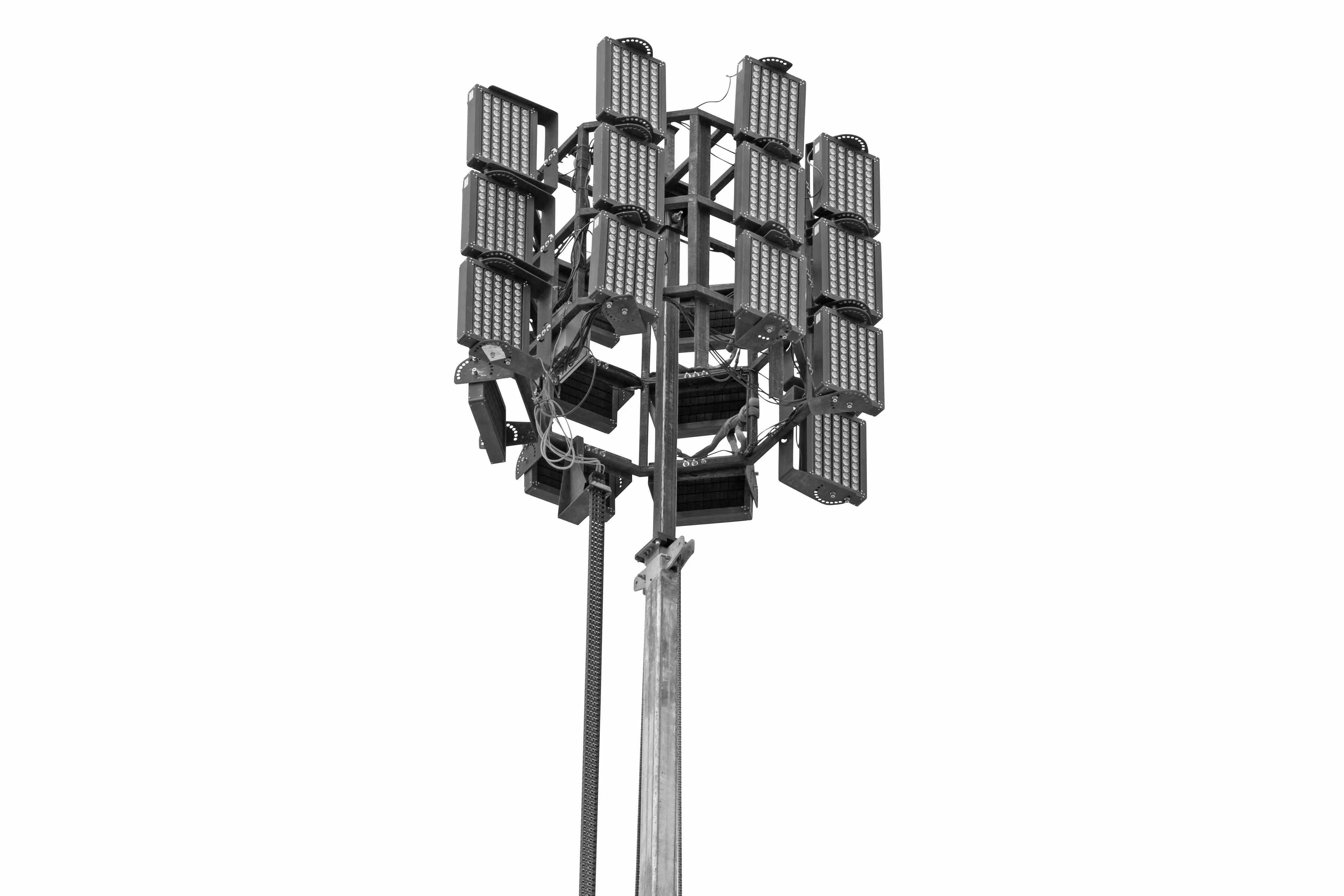

Light Head Specifications
| Specification | Details |
|---|---|
| Lamp Type | LED |
| Total Wattage | 10,000W (500W per lamp) |
| Total Lumens | 1,350,000 lumens (67,500 per lamp) |
| Color Temperature | 5000K |
| Efficiency | 135 lumens per watt |
| Waterproof Rating | IP67 |
| Heat Sink Design | Passive cooling for extended LED lifespan |
Trailer Specifications
| Specification | Details |
|---|---|
| Trailer Dimensions | 33'L x 8'W trailer bed |
| Transport Height | 8'6" |
| Hitch Type | Gooseneck with 12" I-beam construction |
| Axles | (2) 10,000 lbs dual tandem with electric brakes |
| Outriggers | (6) 7,000 lbs jacks with 12' x 12" x 12" I-beams |
| Tires | (8) P235/80R16 with steel rims |
| Weight | 18,000 lbs |
| Wind Resistance | Withstands 50 mph when mast is 30' high, 95 mph when collapsed |
Additional Features
| Feature | Description |
|---|---|
| Environmental Rating | IP67 - withstands dust, water, and extreme conditions |
| Stabilization | Six-point leveling system for uneven terrain |
| De-icing System | Prevents hydraulic lines from freezing in cold climates |
| LED Lifespan | 80,000 hours with 70% lumen retention |
| Independent Control | On/off breaker switches for each bank of LED heads |
| Eco-Friendly Design | Mercury-free, recyclable LEDs with reduced heat emission |
Applications
- Construction site lighting
- Industrial facility illumination
- Emergency services and temporary job site lighting
- Large-scale events
- Mining operations
- Harsh weather environments with extreme cold
In Package
- (1) 480V Hydraulic LED Megatower™ with 20 x 500W LED light heads
- (1) Gooseneck trailer with dual tandem axle and six leveling jacks
- Control Box: NEMA 3R breaker control box with individual light controls
- Cold Weather Package: De-icing system, insulated hydraulic lines, and SOOW cables
- Mounting Accessories: Six-point outrigger stabilizers with hand-crank jacks.
