Larson Electronics 77' Hydraulic Megatower™ Light Plant - 33' Trailer - (20) 500W LED Fixtures - 1,350,000 Lumens
Description
The Larson Electronics LM-HLM65-16X500LTL-LED-TLR Megatower™ is a high-output, mobile light tower engineered to deliver powerful and reliable lighting in rugged industrial environments. Featuring twenty 500W LED lights, it achieves an impressive 1,350,000 lumens, providing superior illumination for mining, construction, large-scale events, and industrial sites. The hydraulic mast extends to 77 feet, offering broad-area lighting from an elevated perspective and collapses to 30 feet for efficient storage and transport.
Built with heavy-duty galvanized carbon steel, this mobile light tower is designed to withstand harsh conditions, from extreme temperatures to demanding terrain. The IP67-rated LEDs and cold weather package, including hydraulic de-icing, ensure reliable performance in cold climates. Operators can independently adjust each LED head to tailor light direction, maximizing coverage efficiency. The unit’s dual tandem-axle trailer, equipped with six leveling jacks, ensures stable setup on uneven surfaces, making it a robust and flexible lighting solution for industrial applications.
Key Features
- Total Light Output: 1,350,000 lumens from twenty LED heads, ideal for expansive lighting needs.

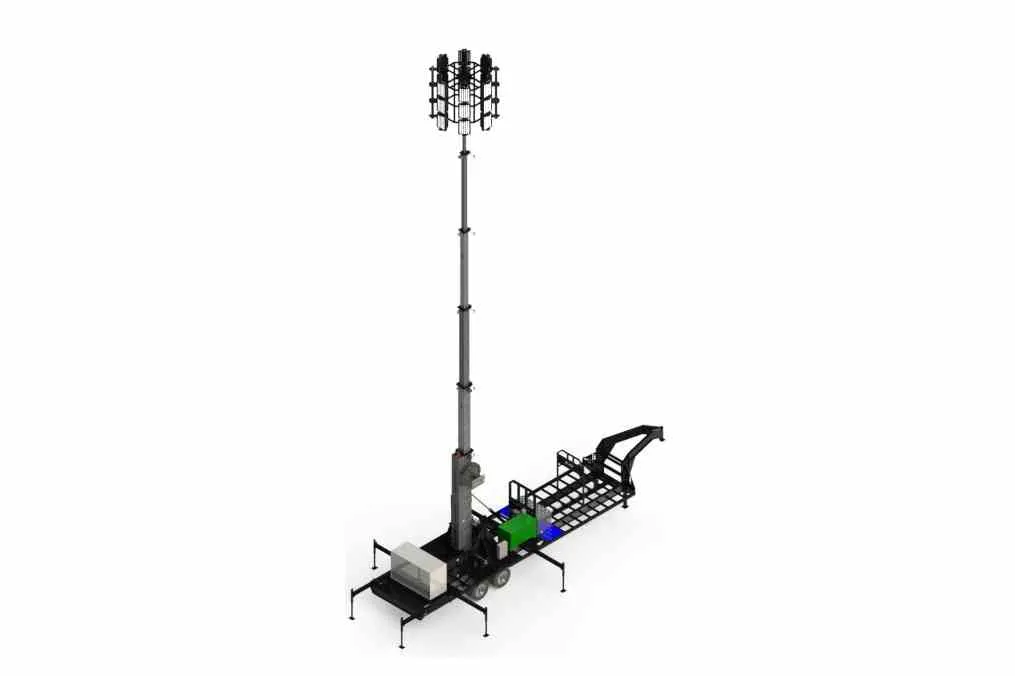

- 77-Foot Hydraulic Mast: Reaches up to 77 feet and collapses to 30 feet, maximizing versatility.
- Customizable Power Configurations: Compatible with 120/240V or 120/208V in single or three-phase options.
- Heavy-Duty Build: IP67-rated LEDs and galvanized steel construction withstand rugged environments.
- Cold Weather Optimized: Hydraulic de-icing system and insulated components prevent freezing in sub-zero temperatures.
- Environmentally Friendly LEDs: Low power consumption, mercury-free, and 100% recyclable.
- Wind Monitoring with Auto-Retract: Automatically retracts in high winds for enhanced safety.

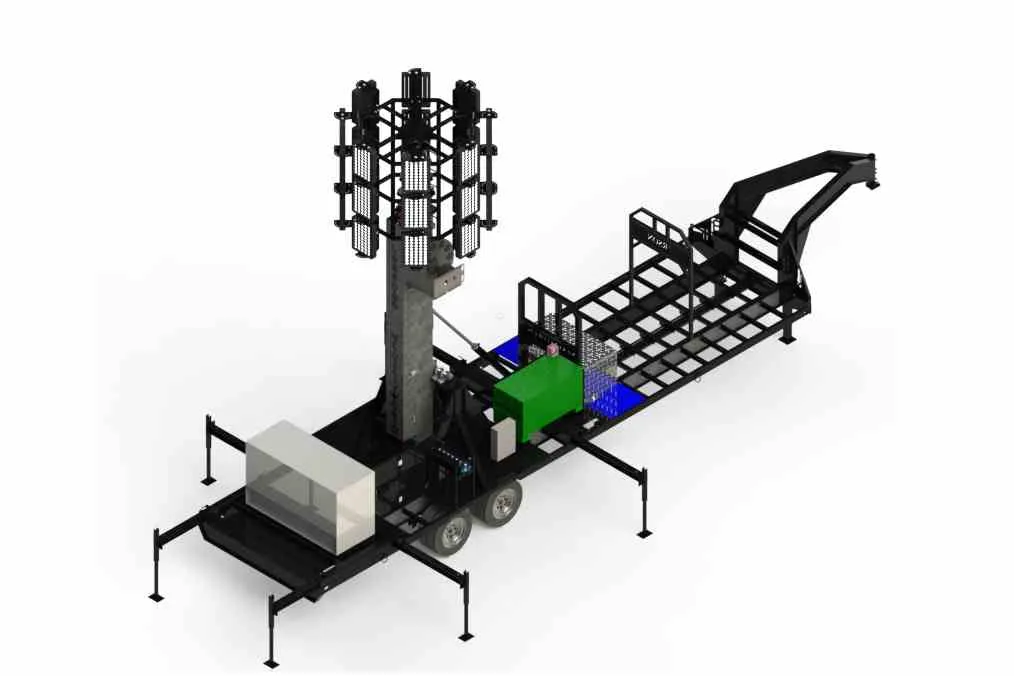

- Six-Point Stabilization System: Dual-axle trailer with six adjustable jacks for stability on uneven surfaces.
- Eco-Friendly LEDs: Cooler running with reduced energy waste compared to traditional metal halide lamps.
Detailed Specifications
System Specifications
| Specification | Details |
|---|---|
| System Type | Mobile LED Megatower with Hydraulic Mast |
| Voltage Options | 120/240V 1P, 120/208V 1P, 240V/120 3P, or 208V/120 3P |
| Amperage (Max) | 65A @ 208V 1P, 57.5A @ 240V 1P, 40A @ 208Y 3P, 36A @ 240V 3P |
| Power Connection | Customer provided |
| Cold Weather Package | Included (de-icing system, insulated hydraulic lines) |
Light Mast Specifications
| Specification | Details |
|---|---|

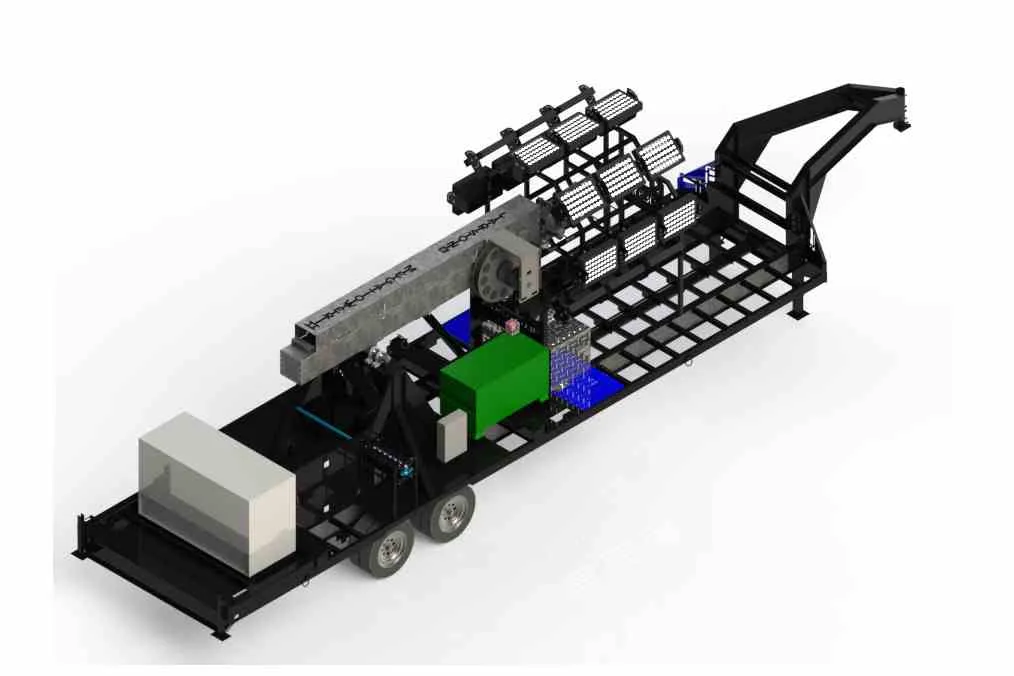

| Tower Length | 30' (collapsed) to 77' (fully extended) |
| Mast Material | Galvanized Carbon Steel |
| Operation | Hydraulic for upright and extension |
| Wind Resistance | Auto-retract feature for wind speeds over 35 mph |
Light Head Specifications
| Specification | Details |
|---|---|
| Lamp Type | LED |
| Total Wattage | 10,000W (500W per lamp) |
| Total Lumens | 1,350,000 lumens (67,500 per lamp) |
| Color Temperature | 5000K |
| Efficiency | 135 lumens per watt |
| Waterproof Rating | IP67 |
| Heat Sink Design | Passive cooling to prevent LED color shift and extend lifespan |
Trailer Specifications
| Specification | Details |
|---|---|
| Dimensions | 33'L x 8'W trailer bed |
| Transport Height | 8'6" |
| Hitch Type | Gooseneck with 12" I-beam construction |
| Axles | (2) 10,000 lbs dual tandem with electric brakes |
| Outriggers | (6) 7,000 lbs jacks with 6' x 12" x 12" I-beams |
| Tires | (8) P235/80R16 with steel rims |
| Weight | 18,000 lbs |
| Wind Resistance | Withstands 50 mph when mast is 30' high, 95 mph when collapsed |
Additional Features
| Feature | Description |
|---|---|
| Environmental Rating | IP67 - withstands dust, water, and extreme conditions |
| Stabilization | Six-point leveling system for uneven terrain |
| De-icing System | Prevents hydraulic lines from freezing in cold climates |
| LED Lifespan | 80,000 hours with 70% lumen retention |
| Independent Control | On/off breaker switches for each bank of LED heads |
| Eco-Friendly Design | Mercury-free, recyclable LEDs with reduced heat emission |
Applications
- Mining site lighting
- Construction site illumination
- Industrial facility lighting
- Large event lighting
- Emergency lighting for job sites
- Harsh weather environments with extreme cold
In Package
- (1) LM-HLM65-16X500LTL-LED-TLR Megatower™ with twenty 500W LED light heads
- (1) NEMA 3R breaker control box with individual light controls
- Cold Weather Package: Hydraulic de-icing system, insulated control box, weather-rated SOOW cables
- Trailer Components: Six retractable leveling jacks, dual tandem-axle setup with gooseneck hitch
- Mounting Accessories: 6-point outrigger stabilizers with manual adjustment
